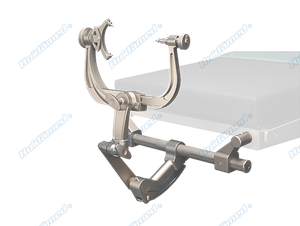

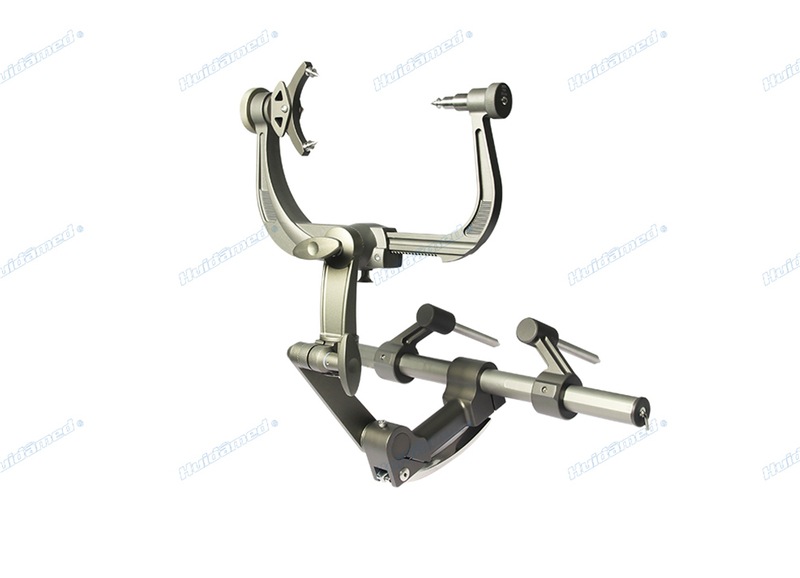

Mayfield Cranial Stabilization System

1. All parts of the head frame are made of imported aluminum alloy 6061, 6063 plates and pipes. They are strong and durable, lighter in weight, and the total weight does not exceed 5.5KG. All raw materials can be proof of imported aluminum.

2. Pure mechanical processing, no casting materials. The outer surface of aluminum is treated with matte hard oxidation to reduce light source reflection, the surface is more wear-resistant, and reduce traces of use after long-term use.

1. The insertion rod is available in a variety of sizes, and can also be customized with a non-standard surgical bed.

2. The head frame shaft is 500mm, and the plug rod adjustment width is up to 550mm. Front and back movement: 400mm, left and right movement: 450mm, up and down lift: 850mm

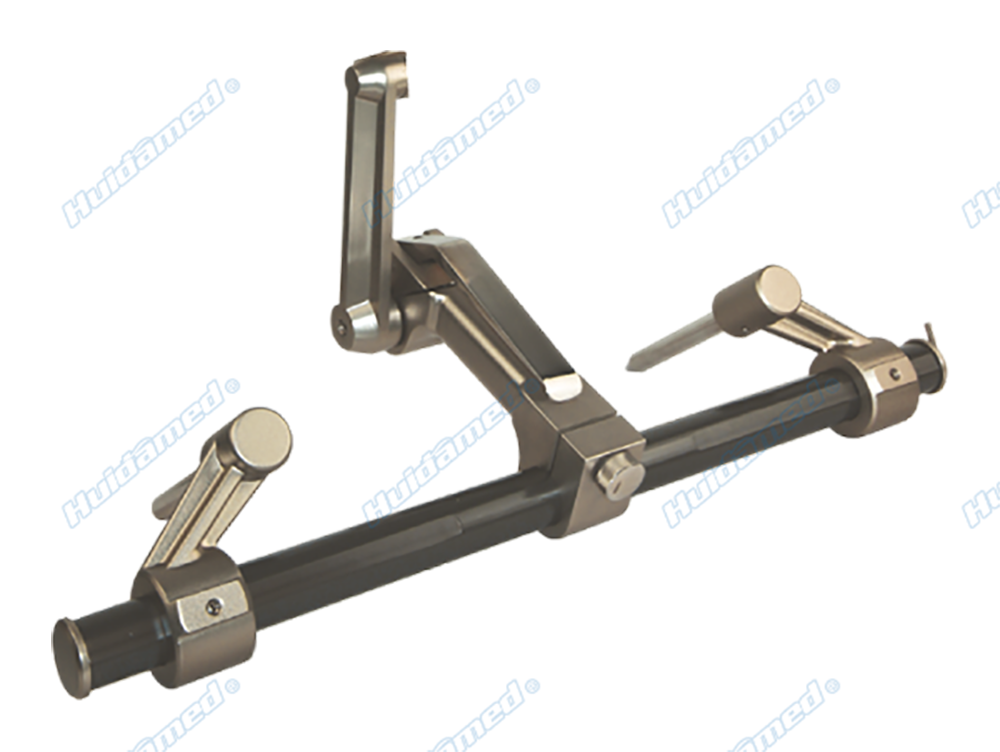

Universal shaft:

1. There are rotary universal shafts and spherical universal shafts.

2. The rotary universal shaft can rotate 360 degrees in a plane and cannot be adjusted longitudinally, but has the highest safety performance.

3. The spherical universal shaft can rotate at a plane of 360 degrees and longitudinally rotate at 90 degrees, and can undergo side-lying surgery. The universal ball is made of stainless steel 304, with an unobstructed locking handle, and is proprietary arc cutting, and can be locked at any angle.

1. Three-top fixing, head clamp fixing arm streamlined design.

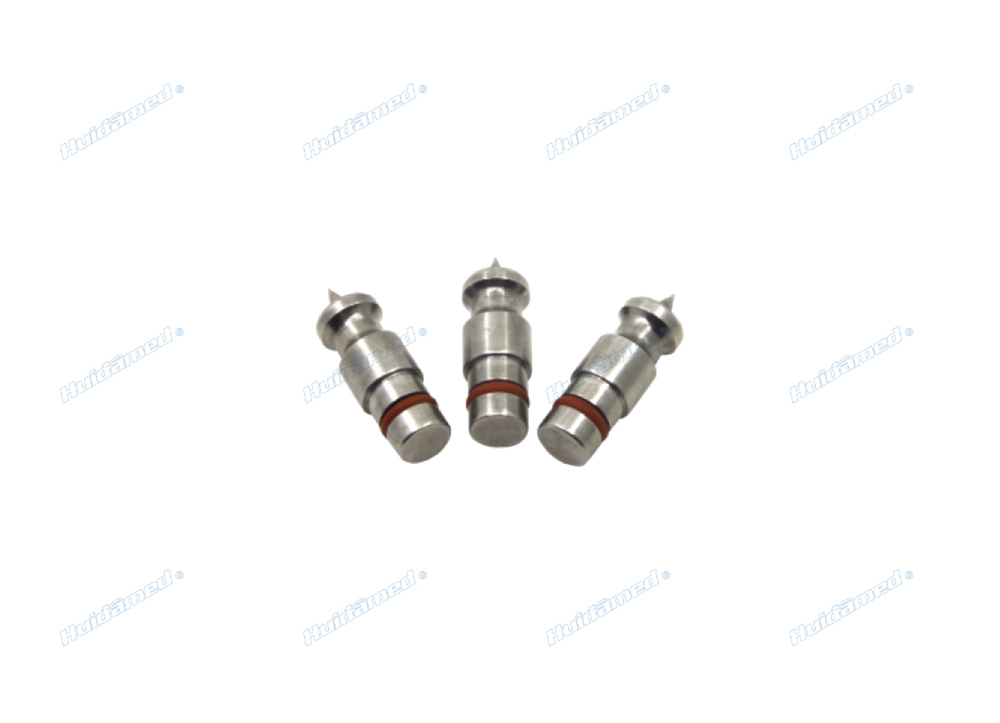

2. Standard equipped with stainless steel 304 head staples for adults and children as imported products

3. Standard 80lbs head tack with the same scale as imported products is equipped with the same standard as the imported products

4. Half-circle locking technology saves surgical time and simplifies operation.

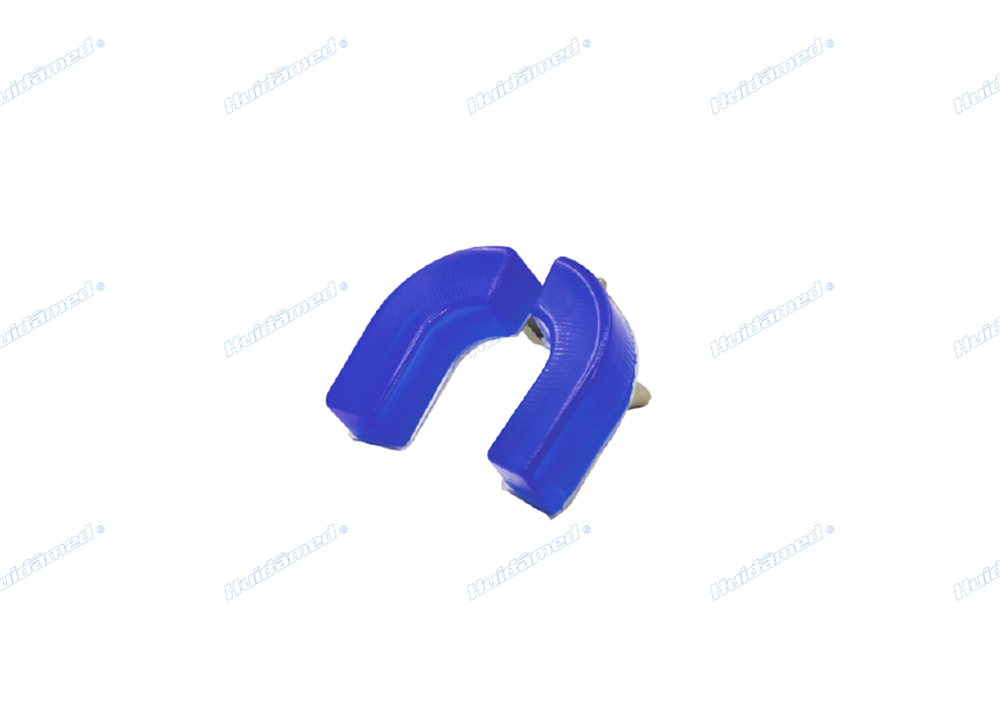

The standard gel tart is made of the latest polymer material. It has a texture that mimics the softness of human skin, can relieve local tissue pressure, nerve compression, and reduce iatrogenic damage. Appropriate heating can be used to reduce the patient's heat loss during the operation.

CE, EU EN ISO:13485
